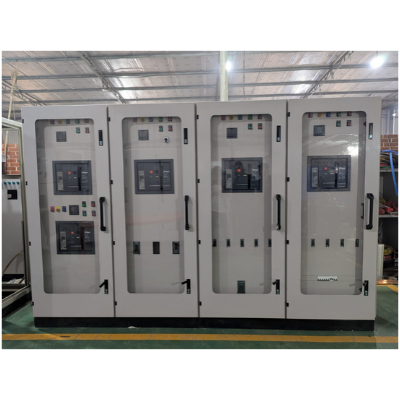

The Automatic Transfer Switch Panel (ATS Panel) is designed to automatically transfer electrical loads between the main utility supply and a standby generator. It monitors the main power supply and initiates the backup power sequence when a failure is detected.
When the main supply becomes unavailable, the ATS panel sends a generator-start signal. Once the generator is available and the required operating conditions are met, the panel transfers the connected load to the backup source. This reduces the need for manual switching and supports reliable backup power management in commercial, industrial, and institutional facilities.
| Product Type | Automatic Transfer Switch Panel (ATS Panel) |
|---|---|
| Primary Function | Automatic Power Source Transfer |
| Main Supply | Utility Supply |
| Backup Source | Standby Generator |
| Failure Detection | Mains Failure Detection |
| Generator Control | Generator-Start Signal |
| Transfer Condition | Generator Availability Signal |
| Rated Current | Not Specified in Catalog |
| Rated Voltage | Not Specified in Catalog |
| Application | Standby Power Systems |
The ATS panel automates the transfer of electrical loads between the primary utility supply and a standby generator. It monitors the main supply and initiates the changeover sequence when a power failure occurs, helping reduce delays associated with manual switching.
When the main supply fails, the panel sends a start signal to a compatible generator control system. It then monitors the generator availability signal and transfers the load when the configured operating conditions are satisfied. This coordinated process helps ensure that the backup source is ready before supplying the connected equipment.
An ATS panel is useful for facilities where power interruptions can affect daily operations, equipment performance, and business productivity. By automating the changeover process, it supports convenient and organized backup power management.
When utility power is restored, a suitably configured ATS panel can transfer the load back to the main supply after the required verification and delay periods. The generator may then complete its configured cooldown sequence before stopping.
Q1. What does an ATS panel do?
An ATS panel automatically transfers electrical loads between the main utility supply and a backup power source, typically a standby generator.
Q2. Can an ATS panel start a generator automatically?
Yes, when configured with a compatible generator controller, it can send a start signal following a mains failure.
Q3. When does the ATS panel transfer the load?
The load is transferred when the generator is available and the required control conditions are satisfied.
Q4. Can it switch back to the main supply?
Yes, a suitably configured ATS panel can return the load to the utility supply once the main power is restored and verified as stable.
Q5. How do I choose the right ATS panel?
Consider the rated current, operating voltage, phase configuration, generator capacity, connected load, and control compatibility. Confirm the required specifications before installation.
