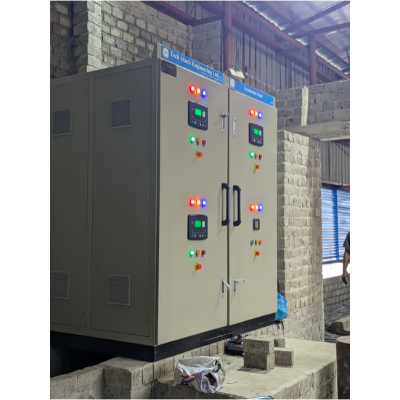

The Generator Synchronizing Panel is designed to coordinate multiple generator sets and connect them to a common electrical busbar. It manages generator synchronization, automatic starting, and load connection to support reliable power distribution in facilities with high electrical demand.
When the main utility supply fails, the control system can initiate generator starting after a configured delay. Following the required warm-up period, the generators are synchronized before their switching devices connect them to the common busbar. With adjustable timing functions and motorized switching arrangements, the panel supports coordinated generator operation in commercial, industrial, and large-scale backup power systems.
| Product Type | Generator Synchronizing Panel |
|---|---|
| Primary Function | Generator Synchronization and Load Connection |
| Operating Mode | Automatic Mains Failure System |
| Generator Starting | Coordinated Generator Sets |
| Timing Functions | Adjustable Delay and Warm-Up Periods |
| Switching Components | Motorized Circuit Breakers or Contactors |
| Connection Arrangement | Common Busbar |
| Changeover Arrangement | Motorized Changeover Mechanism |
The Generator Synchronizing Panel is designed for electrical systems that use multiple generators to meet power requirements. It coordinates generator operation and enables synchronized connection to a common busbar, allowing the available generator capacity to serve connected loads according to the system design.
When the main utility supply fails, the automatic mains failure system can initiate generator starting after a configured delay. Once the generators complete their warm-up period and meet the required synchronization conditions, the panel coordinates their connection to the common busbar. This automated sequence reduces the need for manual intervention during power interruptions.
Before multiple generators can connect to a shared busbar, their electrical outputs must meet the required synchronization conditions, including voltage, frequency, and phase alignment. The synchronizing panel manages this process according to its control configuration, supporting stable and coordinated generator operation.
The panel can incorporate motorized circuit breakers or contactors for generator switching, together with a motorized changeover arrangement for connecting the load to the appropriate power source. These components work together to manage generator connections and load transfer based on the electrical system design.
Adjustable delay and warm-up periods help accommodate generator starting requirements and operating conditions. Properly configured timing allows generators to stabilize before synchronization and load connection, supporting a controlled power transfer sequence.
Q1. What is a Generator Synchronizing Panel?
A Generator Synchronizing Panel coordinates multiple generator sets so they can operate in synchronization and connect to a common electrical busbar.
Q2. Can the panel operate automatically?
Yes, the system can support automatic mains failure operation, including generator starting, synchronization, and load connection according to its configured control sequence.
Q3. Why is generator synchronization necessary?
Synchronization ensures that generators meet the required voltage, frequency, and phase conditions before connecting to a common busbar.
Q4. Are adjustable timing functions available?
Yes, adjustable delay and warm-up periods can support the generator starting and synchronization sequence.
Q5. Which switching components can be used?
The panel can use motorized circuit breakers or contactors, along with a motorized changeover mechanism, depending on the system design.
